X-APIX

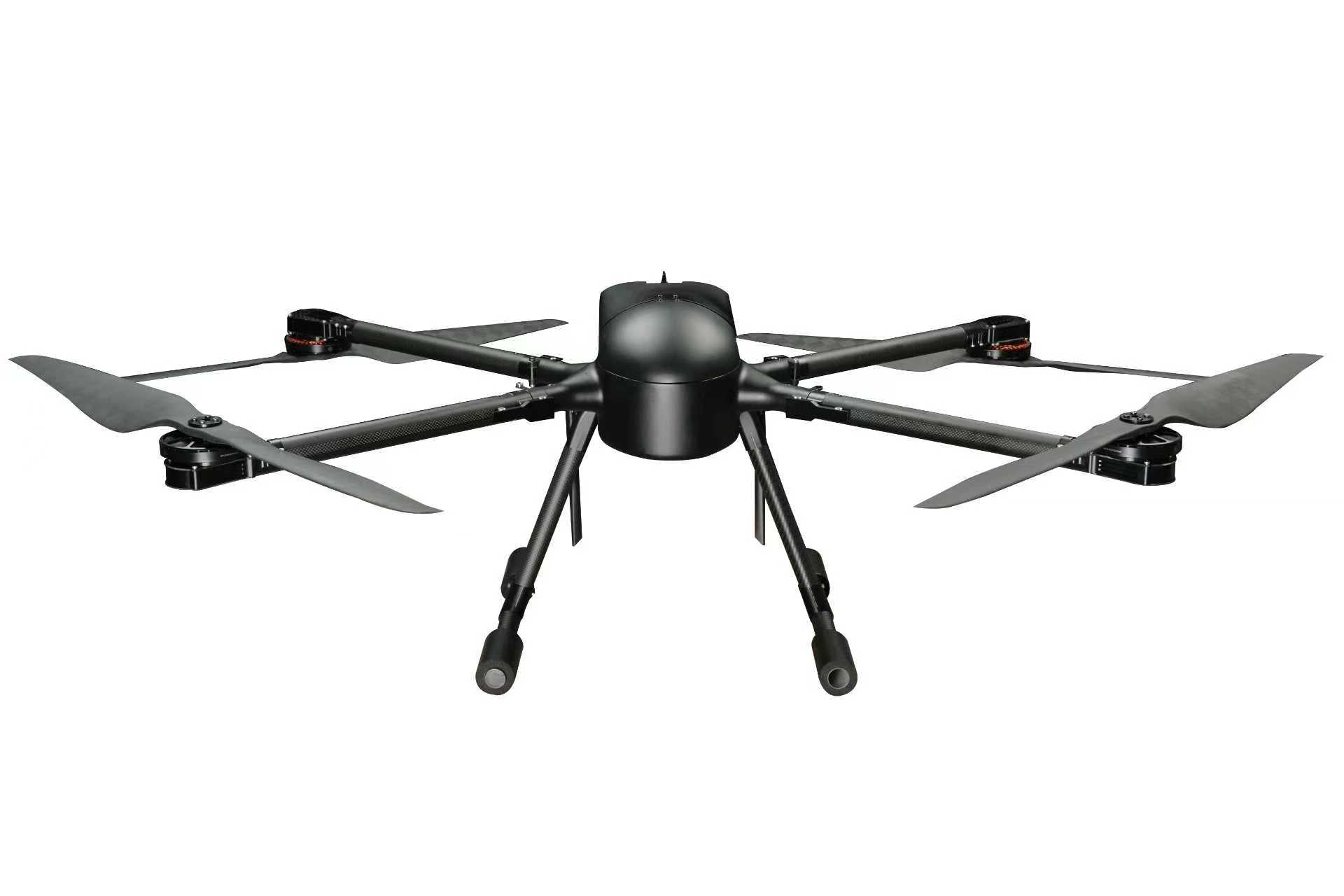

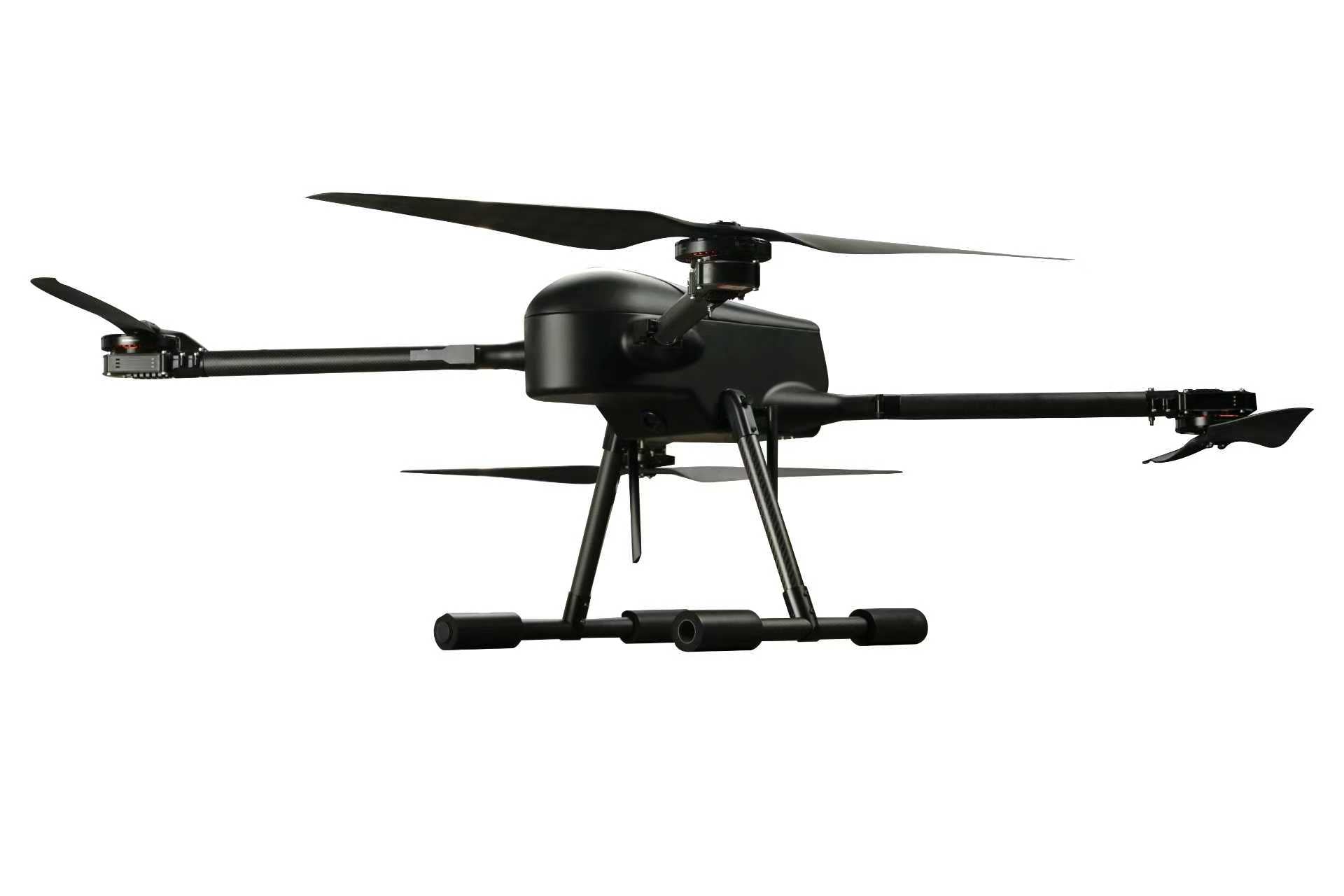

P120: Soaring Beyond Limits, Lightweight yet Mighty.
Product Features
The P120 drone offers extended 120-minute flights, easy operation, and cost-saving efficiency. Its modular build and customizable gimbals suit diverse tasks, while its cargo drop capability delivers to remote areas.
Extended Flight Time
With a remarkable 120-minute flight duration, the P120 enables longer missions without frequent landings for recharging.
User-Friendly Operation
The drone's extended range and payload capacity significantly reduce manpower needs and operational time, ideal for monitoring long infrastructure networks.
Cost and Time Efficiency
The drone's extended range and payload capacity significantly reduce manpower needs and operational time, offering substantial savings.
Quick Assembly and Disassembly
Its modular design ensures swift and hassle-free assembly and disassembly, facilitating easy transport and flexible deployment.
Customizable Gimbal Configurations
The P120 can be fitted with various gimbals, making it highly adaptable for scenarios like inspections, search and rescue, and aerial surveying.
Capability for Cargo Drop and Release
Equipped for cargo dropping or release mechanisms, the P120 is able to transport supplies to inaccessible or remote locations.
Industry Areas
X-APIX
P120: Leveraging Technology for Industry Evolution.
Optional Gimbal Pods
Years of evolution have crafted the X491 into a superior, precise, and safe drone, boasting extended 120-minute flights, user-friendly operation, cost and time efficiency, quick assembly, versatile gimbal configurations, and cargo drop capabilities.
30x Dual-light Pod
30x 2-megapixel optical zoom core
640*480 pixel infrared camera
Modular design, strong extensibility
10x Dual-light Pod
CMOS Size1/3 inch, 4 million pixels
Thermal Imaging: 256*192 pixels
Wave: 8-14 µm, Sensitivity:<= 65mk
14x Single-Light Pod
Effective Pixels: 12 Million
Lens Focal Length: 14x Zoom
Minimum Focus Distance: 10mm
Dual-Axis Gimbal Pod
High-Definition Camera: 1080P
Dual-Axis stabilization
Multi-Angle true field of view
Compatible Deployment Devices
The X491 Drone integrates with a variety of compatible deployment devices, from cargo boxes and release hooks to emergency drop ropes, empowering it for precise delivery tasks and critical material transport.
Deployment Box
Maximum Payload of 5kg
High-Strength Structure
Suitable for Delivering Materials
Drop Rope
High-strength, Lightweight: 1.1kg
Quick-Release, Heat-Resistant
Emergency rescue aerial delivery
Remote Deployer
A Key Remote Control
Easy Operation
Remote Control Pre-Set with Data
Automatic Release Hook
Lifting Weight: ≤80kg
Automatic Opening of Hook upon Cargo Landing
Equipped for Specialized Missions
The X491 Drone is customizable with a suite of devices for specific applications, from long-range communication to environmental monitoring and agricultural assessment, ensuring versatility across mission-critical scenarios.
Drone-mounted Megaphone
Transmission range of 3-5 km
Small and lightweight speaker
Clear sound quality
Illumination Device
Rated Brightness: 4000 Lumens
Beam Diameter,: 3m
Effective Lighting Distance: 300m
Atmospheric Monitor
Detectable Gas Types: Flammable Gas, Oxygen, Ozone,, CO2, CO, Ammonia, Formaldehyde, etc
Multispectral Camera
CMOS: 1/3”: Global Shutter,
Effective Pixels: 1.2 million pixels
Pest and Disease Assessment
Technical Specifications
1. Aerial Platform
Dimensions (unfolded)
Dimensions (unfolded)
740 mm * 770 mm * 470 mm (29.13″ x 30.31″ x 18.50″)
Dimensions (folded)
Dimensions (folded)
300 mm * 230 mm * 470 mm (11.81″ x 9.06″ x 18.50″)
Rotor distance
Rotor distance
968 mm
Product Material
Product Material
Carbon fiber + 7075 aviation aluminum + Plastic
Total weight
Total weight
7.3 kg
Rain Prevention Level
Rain Prevention Level
Moderate Rain
Wind Resistance Level
Wind Resistance Level
Level 6
Noise Level
Noise Level
< 50 dB
Folding method
Folding method
The arms fold downwards, with quick-release landing gear and propellers.
2. Flight Parameters
Hover-flight time
Hover-flight time
110 mins (Max)
Route-flight time
Route-flight time
120 mins (Max)
Standard Payload
Standard Payload
3.0 kg
Maximum Payload
Maximum Payload
5.0 kg
Maximum flying range
Maximum flying range
65 km
Cruising speed
Cruising speed
10 m/s
Maximum Rise Rate
Maximum Rise Rate
5 m/s
Maximum Drop Rate
Maximum Drop Rate
3 m/s
Maximum Rise Limit
Maximum Rise Limit
5000 m
Working Temperature
Working Temperature
-40℃~50℃
Water Resistance Level
Water Resistance Level
IP67
*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy.
